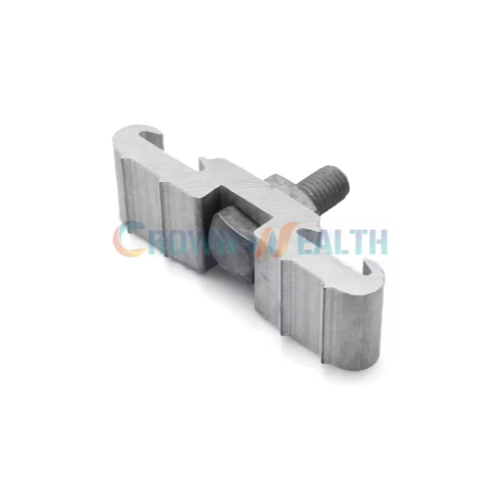

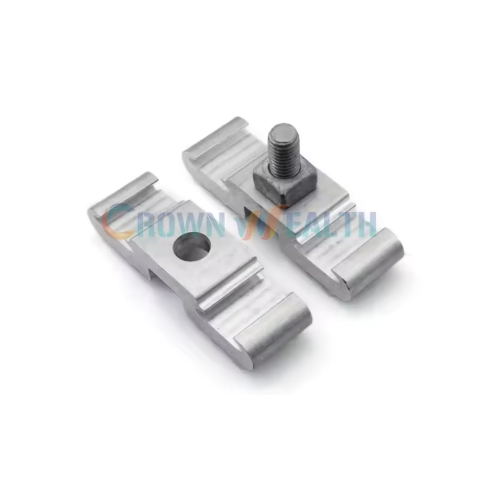

CW-KDSA: Aerial Cable Suspension Bracket (Aluminum Mounting Plate with Bolt)
1. Product Overview
CW-KDSA Aerial Cable Suspension Bracket is an aluminum-mounted plate (with bolts) designed for overhead power line and FTTH (Fiber to the Home) cable installations. It provides reliable support, suspension, and fixation for cable assemblies, communication equipment, or signal control boxes on poles.
2. Material & Construction
-
Material: High-strength aluminum extrusion (ensures durability, high mechanical strength, and strong corrosion resistance).
-
Components: Includes bolts (hot-dip galvanized for extra corrosion protection) and nuts + bracket.
3. Application Scenarios
-
Supports/suspends cable assemblies in overhead power line installations.
-
Fixes/suspends cable suspension clamps, communication equipment, or signal control boxes on poles.
-
Ideal for FTTH ABC Cable (fiber to the home) systems.
4. Technical Specifications
|
Parameter |
Details |
|---|---|
|
Type |
Suspension Mounting Bracket |
|
Material |
Aluminum (high-strength extrusion) |
|
Application |
Fiber to the Home (FTTH) ABC Cable; Overhead power line cable support |
|
Size Options |
133×38×24mm; 120×38×19mm |
|
Bundle Size |
1/2 inch to 1-1/2 inches (compatible with various cable diameters) |
|
Bolt Treatment |
Hot-dip galvanized (enhanced corrosion resistance) |
|
Strength |
High mechanical strength; strong, durable, long service life |
5. Key Features
-
High Performance: Aluminum extrusion ensures high strength, durability, and corrosion resistance.
-
Reliable Support: Securely fixes/suspends cables, equipment, or boxes on poles.
-
Versatile: Compatible with 1/2″–1-1/2″ cables; suitable for FTTH and overhead power lines.
-
Long Service Life: Hot-dip galvanized bolts + aluminum body resist rust and wear.
6. Selection & Installation
Select the appropriate bracket size (133×38×24mm or 120×38×19mm) based on the installed item (cable, equipment, etc.) and usage scenario. Ensure the binding tape width/thickness matches the installation requirements.
This bracket combines strength, corrosion resistance, and versatility—ideal for critical cable support in power and fiber-optic networks.
Technical Specifications
|
Parameter |
Details |
|---|---|
|
Type |
Suspension Mounting Bracket |
|
Material |
Aluminum (high-strength extrusion) |
|
Application |
Fiber to the Home (FTTH) ABC Cable; Overhead power line cable support |
|
Size Options |
133×38×24mm; 120×38×19mm |
|
Bundle Size |
1/2 inch to 1-1/2 inches (compatible with various cable diameters) |
|
Bolt Treatment |
Hot-dip galvanized (enhanced corrosion resistance) |
|
Strength |
High mechanical strength; strong, durable, long service life |
